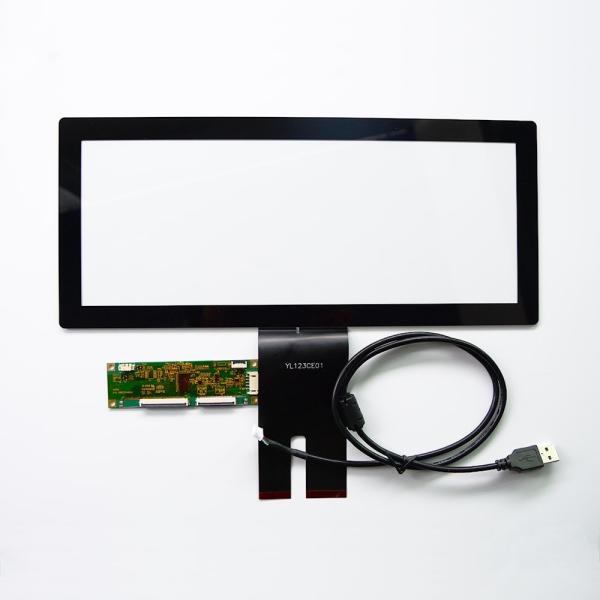

USB interface 12.5inch Industrial Touch Panel With ITO Sensor Glass
12.5inch USB Industrial Touch Screen With ITO Sensor Glass With High Rated
It’s a kind of projected touch panel with USB interface. It can support win7, win8 OS and can realize 10 finger point touch.
Product Specification:
| Size: | 12.5inch |
| Total Thickness: | 1.85±0.2mm |
| Outline of Cover Lens: | 301.48*182.52±0.1mm |
| Outline of ITO Sensor: | 297.48*178.52±0.3mm |
| Viewing Area: | 277.48*156.52±0.2mm |
| Active Area: | 278.48*157.52±0.3mm |
| TP Structure: | G+G |
| Controller: | ILITEK, WEIDA, EETI, Silicon Works etc.(Optional) |
| Cover glass thickness: | 1.1mm,1.8mm,2mm,3mm,4mm,5mm,6mm (Optional) |
| Cover glass treatments: | AG, AR, AF, AE (Optional) |
| CTP interface: | USB |
| Operating system: | Win7, Win8, Win10, WCE, Android, Linux, XP |
| Working temperature and humidity: | -20°C~70°C,20~85% RH, non-condensing |
| Storage environment and humidity : | -30°C~80°C, 20~85% RH, non-condensing |
| Transparency | ≥85% |
| Response time: | <10ms |
| ESD Air discharge: | 8KV |
| ESD Contact discharge: | 4KV |
| Pen hitting life: | ≥10,000,000/point |
| Pen sliding Durability: | ≥500,000 times |
| Finger Touch life: | ≥35,000,000 times |
| Certifications: | CE, FCC, Rohs |
| Aspect ratio: | 16:9 |
| Report rate: | 100HZ |
| Input method: | Finger or capacitive pen |
| Warranty: | 1 Year |
Capacitive Touch Screen:
Capacitive Touch Panel is to use the working current of induction of human body.The operational principle of the projected capacitive touch panel: There are two layers of the ITO layer under the surface of glass. This ITO layer respectively forms the electric field of X axis and Y axis, which can keep balance by crossing the surface of the class. Once the fingers approach the glass surface, the fingers and the electrode X axis or Y axis will form a new electric field, which can make the local capacitance change. Then the controller will determine the location based on capacitance changes.
Capacitive Touch Screen Features:
- Response speed fast, smooth touch
- Using the latest projection touch technology <3mm touch faster than other touch screen 3-5ms
- Flat panel, more high-end atmosphere, eliminating infrared touch screen surface with a groove edges are not allowed to shortcomings
- Precision-touch capacitive screen is using the body's current-sensing
- Accuracy up to 99% proficient in writing, no break no drift
- Completely dead 10-point touch really, any point can withstand more than 50 million times touch
- No ghost after the first calibration, drift-free
- Explosion-proof and durable, complete physical steel explosion-proof glass, scratch-resistant, anti-collision, anti-radiation within the core capacitive touch ensure stable, durable
- Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / CE, Mac, Android / Linux and other operating systems
Typical Application of Touch Screen:
- Point-of-information kiosks
- Vending and ticket sales
- Electronic catalogs
- Gaming, lottery, and amusement
- Public pay phones
- Multimedia marketing
- Banking/financial transactions
- Industrial control rooms
- Computer-based training
Delivery Time of Touch Panel:
- Samples in stock: 1~3 working days
- Customized project: 10~15days for samples
- Mass production: 10~18days
FAQ:
1. Are you a factory or trading company?
Re: We are a factory, which is based in Fujian, headquater is in Shenzhen.
2. Does your products have CE&Rohs certificates?
Re: Yes, we have.
3. What’s the shipping method?
Re: By sea / air / express, which methods to be used on the basis of customer’s requirements.
4. What’s the payment methods?
Re: T/T in advance, or 30% deposit before production, 70% balance before shipment.
5. What size of touch screen can you manufacture?
Re: 3.5” to 86”, the bigger size are researching and developing.
PCAP touch Technical Drawings:
